Great Sale LCD display 60A MPPT solar charger controller solar system 12v/24v automatic recognition
Best Water High Rating provide mppt solar charger, solar charger controller, 60a mppt Cool Promotion LCD display 60A MPPT solar charger controller solar system 12v/24v automatic recognition. Get 12% discount Now! Now US $154.00/piece. Hurry buy Now before back to normal price! Normal price US $175.00. Dont waste your time. Buy Now only in Reliable Electric Power Store Trusted Seller Store!

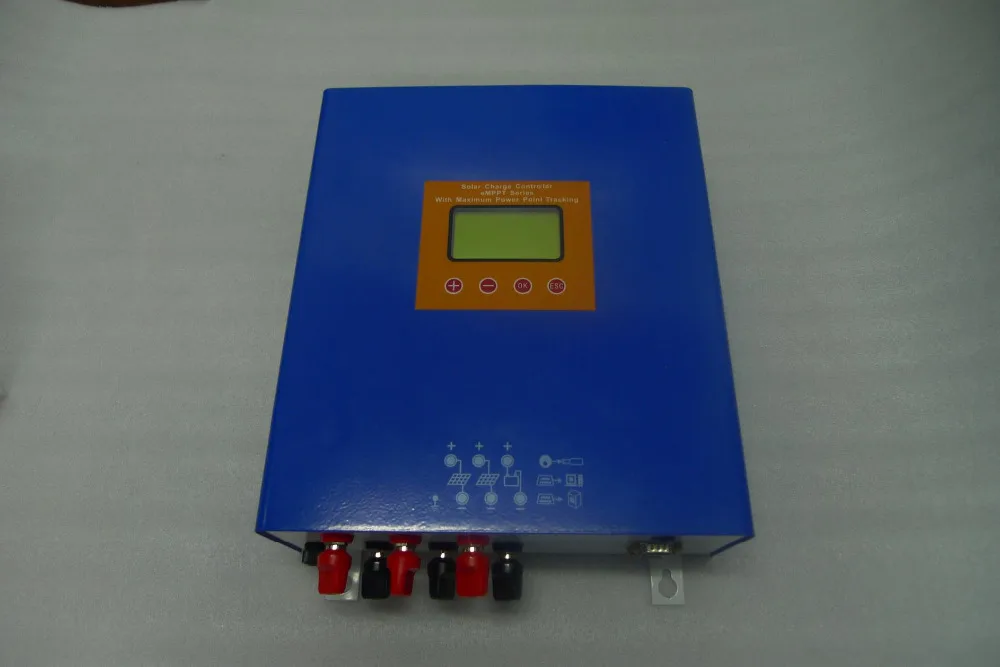

LCD display 60A MPPT solar charger controller solar system 12v/24v automactic recognition
1 Features
eMPPT main topology adopts in Buck conversion circuit, and uses MCU
to adjust the solar panels working point intelligently in order to make the solar
panels output its maximum power. When the circumstances change, the
working point of solar panels deviate from the maximum power point,MCU will
adjust the solar panels working point based on MPPT calculation to make the
solar panels back to the maximum power point again(refer to 2.3 about MPPT
technology introduction) Compared with PWM controller, eMPPT controller
can increase the output of solar panels by 5%~30%. The output increasing
proportion is affected by the factors such as solar panels property, humidity
and light intensity. At the LCD interface, this product adopts in big LCD screen
lattice to show the parameters and states, using vivid icon to show individual
parameters. The controller uses 4 buttons to realize interfaces shifting and
parameter setting. The LCD screen is simple and concise, and the whole
machine wall-mount installing (refer to chapter 4.1). Nylon terminal makes the
wiring area bigger and wiring loss less.
2 Functions
Maximum power point tracking function
Use Buck conversion circuit and MCU technology to track the maximum
power point to realize the maximum output of solar panels in different light
intensity and temperature, and this can gain more value for customers.
3 Specifications
4 Protections
1 Over current protection
The electrical equipment used in power circuit must be equipped with over
current and short-circuit protection devices, and there is no exception for
eMPPT controller. eMPPT controller adopts in the design of sharing
positive pole inside. We suggest users to install over-current breaker or
fuse on the negative loop of solar panels input, and also the negative loop
of battery output. The capacity of over-current breaker or fuse is 1.25 times
of the rated current.
2 Lightning protection
It is the same as other electrical devices that eMPPT controller will be
damaged by lightning. eMPPT controller has limited surge absorption
capacity. We strongly suggest users to install lightning surge absorption
devices to increase the reliability of the system.
3 Grounding
eMPPT controller has protection grounding terminal. Use 4 mm 2 yellow
and green lines to connect the grounding terminal of the controller to the
ground bus of the system. This can decrease the electromagnetic interface
in a certain value.
4 System expansion
If users want to deploy bigger system, you can expand the system by
paralleling several sets of controller. More controllers can share one
battery group, but one controller must be connected with one independent
solar panels array.
5 Package
Packing Size:450*335*160mm
N/W/G.W.(KG) 5.5/6KG
1PC/CTN
