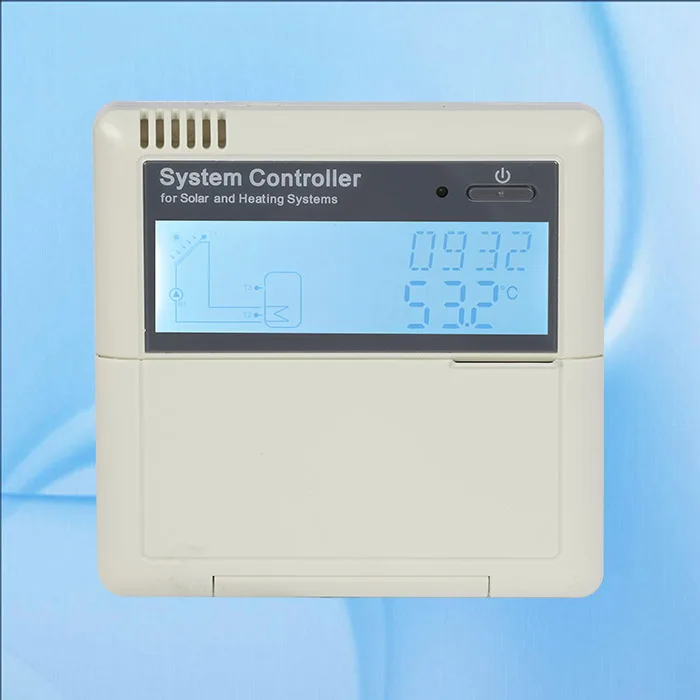

Cool Gift 100-240V SR81 (SR868C8) Solar Water Heater Controller Temperature Controller Solar Controller Thermal Controller

Best Water High Rating provide solar controller, controller solar, solar water heater controller Hurry! Offers 100-240V SR81 (SR868C8) Solar Water Heater Controller Temperature Controller Solar Controller Thermal Controller. Get 5% discount Now! Now US $65.00/piece. Dont waste your time. Buy Now only in Ultisolar Controller&Sensors Wholesale Branch Trusted Seller Store!

100-240V SR868C8 Solar Water Heater Controller Temperature Controller Solar Controller Thermal Controller Solar NTC10K PT1000

SR868C8 has been replaced by SR81 with some optimization and same apparance, if you need manual first, please send us message with email address.

​SR81 3000W and 4000W version has no power cable with plug.

the default setting dont show T3, because many people dont use T3, so we hide T3 in the new version.

ONLY when you open the auxiliary heating function and set the sensor T3. Then the T3 will display.

Solar System Controller SR868C8 Solar System Controller Free Manual Classic model Free Shipping 3 days out Ultisolar New Energy

Working Principle

1 collector array -1 storage tank -1 pump and auxiliary heating

Description: The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (Delta T on) between the collector array (T1) and the storage tank (T2) is reached. If the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (Delta T off), or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump (R1) is switched off. Back-up heating by auxiliary boiler (detailed see paragraph 4.3): Within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump (H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump H1 of back-up heating is ceased.

Technical Data

1. Specification: SR868C8

2.Appearance of controller: 120mm*120mm*18mm

3. Power supply: AC230V within 10%

4. Power consumption: < 3W

5. Accuracy of temperature: within2 centigrade measuring

6. Range of collector: -10-220 centigrade

7. temperature measuring

Range of tank: 0-110 centigrade

8. temperature measuring Suitable power of pump: three pumps, : no more than 600W

9. Suitable power of : power: no more than 1500W or no more than 3000W/4000W

10. electrical heater

Inputs: One Pt1000 sensor(:no more than500 centigrade) for collector (silicon cable: no more than 280 centigrade),

Two NTC10K, B3950 sensor: no more than 135 centigrade for tank, PVC cable: no more than105 centigrade,

Outputs : Three relays, for circulation pumps or 3-way electromagnetic valve

One relay for electrical heater

11. Ambient temperature: -10-50 centigrade

12. Water proof grade : IP40

Main Functions

1. Main menu DT O & DT F Temperature difference function

2. Main menu-THET timing heating

3. TEMP Temperature main menu

4. EM Emergency collector temperature

(emergency switch-off temperature of collector)

5. CMX Maximum limited collector temperature (collector cooling function)

6. CMN low temperature protection of collector

7. CFR frost protection of collector

8. SMX Maximum temperature of tank

9. REC Tank re-cooling function

10. Celsius and Fahrenheit temperature transferring

11. FUN Auxiliary function

12. DVWG Anti-bacteria function

13. CIRC Temperature controlled hot water circulation pump

14. nMIN Solar circulation pump speed adjusting (RPM speed controlling)(Only available on SR868C8Q)

15. OHQM Thermal energy measuring (Only available on SR868C8Q)

16. INTV Pump interval function (Only available on SR868C8Q)

17. BYPR High temperature by-pass function

(tank temperature automatically adjusting)

18. HND Manual mode

19. PASS Password setting

20. LOAD Recovery to factory setting

21. ON/OFF button

22. Holiday function

23. Manual heating

24. Temperature query function

25. Memory Protection

26. Anti-dry heating Protection

27. Screen protection

About Delivery:

The freight quoted DOES NOT include extra charges for remote area listed by Express company.

About Connection

Parallel (straight) threads, British Standard Pipe Parallel thread (BSPP), which have a constant diameter; denoted by the letter G. Under the standard of ISO 228

G1/2" the nominal diameter is 15mm, commonly known as DN15mm; the outer diameter of G1/2" thread is 20mm around.

G3/4" DN20mm OD 25mm around; G1" DN25mm OD 32mm around ;G2" DN50mm

About Warranty

We provide 1 year mininium warranty for all our products. Any defects or failure of the products, you can ask to replace the product with evident proof, usually by video.
