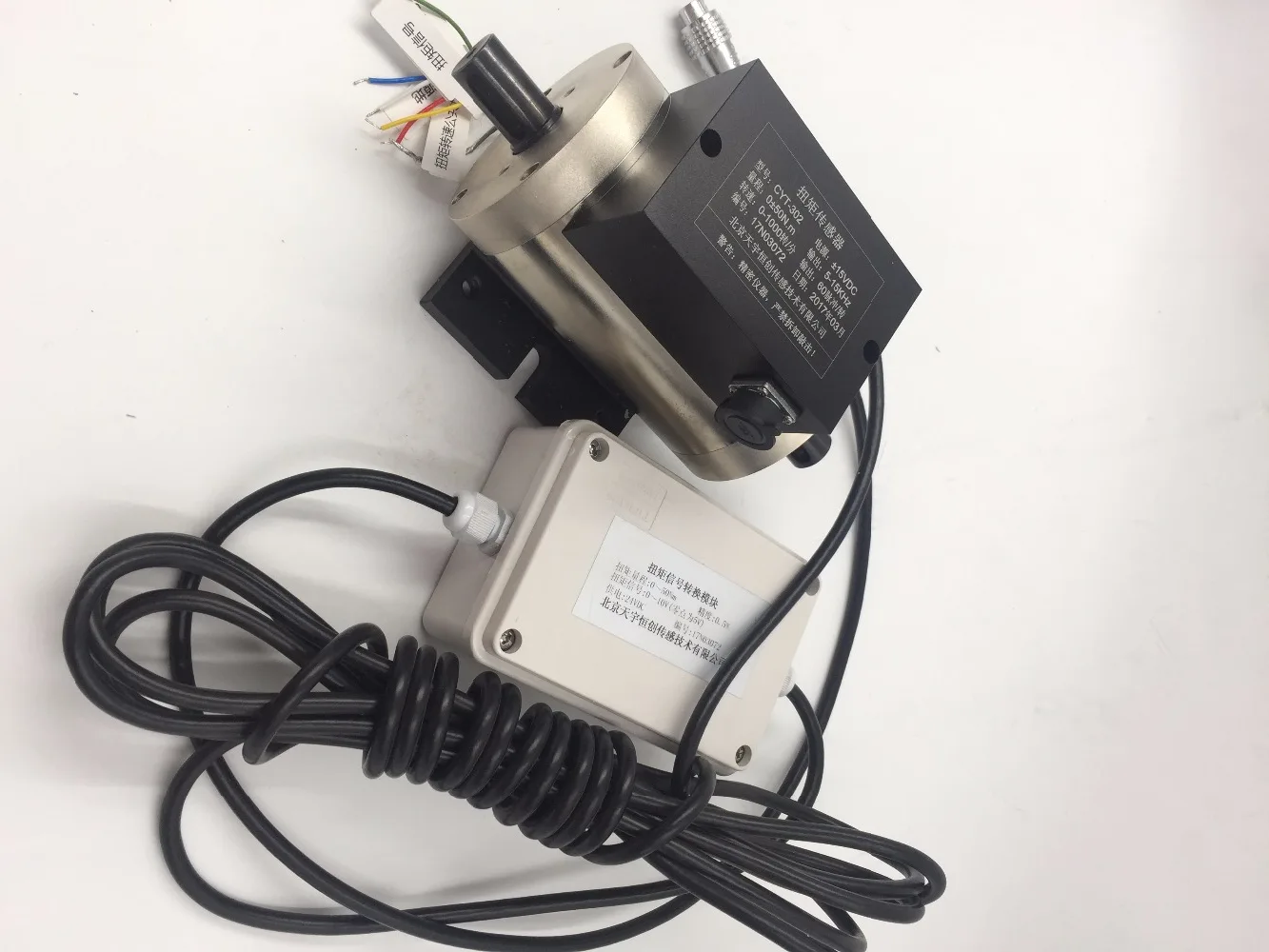

Big Gift 5Nm Dynamic Torque Sensor Rotary torque sensor Used for fan,motor,water pump With F/I Current Signal Module


Best Water High Rating provide sensor sensor, sensor torque, sensor current Big Stock Clearance 5Nm Dynamic Torque Sensor Rotary torque sensor Used for fan,motor,water pump With F/I Current Signal Module. Get 5% discount Now! Now US $830.00/piece. Dont waste your time. Buy Now only in Fast To Buy Limited Trusted Seller Store!

Packing list

1PCS Dynamic torque sensor

cable + Signal module

Features

It can measure both static torque and rotation torque and rotate speed

High precision, good stability and strong anti-interference ability.

Small size, light weight, easy to install

It can continuously measure positive and inverse torque, no need to adjust zero repeatedly

It can run at a high speed for a long time, with no convergence ring and other wear parts

The strain elastic body is strong enough to withstand 150% load

Horizontal installation or vertical installation

The sensor part can be separated from the secondary instrument and used independently, it together with measuring plate card, PLC or DCS components form a measuring torque device

ItemsParameters
Rated torque 100NM
Power supply ±15V DC(for frequency output signal);
24V DC(for the voltage or current output signal)
Torque output signal Standard : 5-15kHz (amplitude 12V,zero point 10kHz); Optional：4-20mA,1-5V,0-10V,RS232/RS485, (Need to add a signal conversion module)
Speed output signal Standard : 60 pulse per rotary (amplitude 12V,No accumulation error);
Optioanl： 4-20mA,1-5V
Speed range 0~1000rpm,
0~3000rpm,
0~6000rpm,
0~8000rpm
Accuracy ±0.5%
Year stability 0.3% per year
Non-repeatability ±0.1% of R.O.
Overload capacity 150% of F.S.
Operating Temperature Range -20...+60oC
Insulation Resistance >200MΩ/100V DC
Material of Element Stainless steel
Response time 1ms
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
Super Offers 5Nm Dynamic Torque Sensor Rotary torque sensor Used for fan,motor,water pump With F/I Current Signal Module
