Cool Cheap Water Pump Controller/ Water Level Controlling Valve/ Floater Level Controller Replacement/ Water Tank Level Controller
Best Water High Rating provide control valve actuator, control valve manual, control pipe Fantastic Promotion Water Pump Controller/ Water Level Controlling Valve/ Floater Level Controller Replacement/ Water Tank Level Controller. Get 7% discount Now! Now US $46.40/piece. Hurry buy Now before back to normal price! Normal price US $49.89. Dont waste your time. Buy Now only in Svit SensoPlan by Trumsense Official Store Trusted Seller Store!
 | |||
The double probes level controller buying link,
The single controller buying link,
cathy

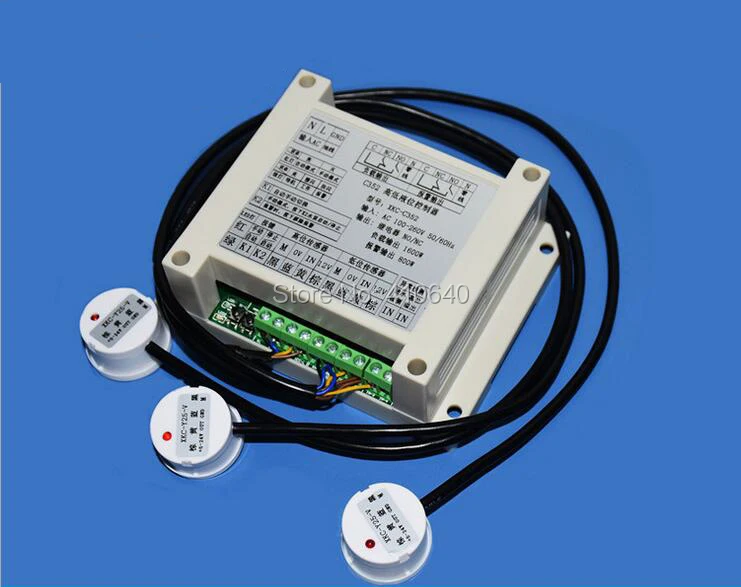

1. OverviewXKC-C352 low level controllers and XCK-Y25 non-contact liquid level sensor used in conjunction with, and to be with other float level sensors and other uses, low level in the container is too small level emitted by the level sensor alarm when the pump starts automatically added to the signal level, the liquid level reaches a certain height high level sensor sends a signal to automatically stop the pump working, the container liquid level in order to achieve automatic control functions. The controller is protected by a self-test capability with the pump stopped pumping air testing, high overflow detection, pumping out check; control diversification can control the pump in manual mode, the automatic mode can also control the pump; a variety of output, all the way to high load output power control up to 1600W, one alarm output control up to 800W, there is normally open relay outputs can also be AC 110V or 220V output. The controller is a full feature set, suitable for many applications.2. Characteristics 1, compatibility level sensor input can use a variety of control; 2, strong protection ability, with anti-slip protection and pump water overflow detection output, comes with 4 hours overtime pumping alarm; 3, relay dry contact output, suitable for a variety of load control; 4, the control diversification can be manual or automatic mode to control the pump; 5, easy to install, can be installed positioning screws rail mounting electrical boxes; 3. Electrical ParametersModel: XKC-C352AName: C352 high and low level automatic controllerInput voltage: AC100V-220V, 50 / 60HzOperating voltage: DC12VCurrent job: working current ≤110 mA, static current consumption ≤20mALoad power: 1.6KW or less (for three-phase pump overload or the need to install AC contactor)Alarm output: 800W (resistive load) normally open normally closed outputOutput: normally closed or normally open relay AC AC110V / 220V (please leave a message, the default setting to send 220V)input signalLow sensor signal input;High induction signal input;Pump idling detection signal;Water overflow alarm signal input;Sensing head interface voltage: DC 12VWorking temperature: -10 ~ 75CDimensions: 115 * 90 * 40
4. Basic Function Introduction 1. The water level control: low water level below the sensing probe, the pump automatically starts to rise, to the high water level, automatically shut down the pump. 2. idle delay to stop the pump: After starting as detected no water supply pipe, the delay of 3 to 5 minutes, turn off the pump. Pumping process, where there is disruption of water flows more than 3 seconds, then immediately turn off the pump. 3. The automatic tracking of water: two hours after idling the pump stops pumping water once every start the pump until the water filled pump stops. 4. pumping overtime protection: Continuous automatic pumping over five hours, automatically stops the pump. Working indicator flashes quickly, press K2 key to stop or delay the automatic recovery standby. 5. Manual and automatic switch: The controller automatically enters the default boot mode, press K1 key to switch the operating mode, the red light for the automatic mode to manual mode the red light off. 6. The non-contact sensing probe: non-contact capacitive sensing technology and a dedicated sensor control chip design, the probe has a durable, strong anti-jamming capability, sensor sensitivity, not in contact with the liquid, corrosion resistance, safety and non environmental pollution. 5: Dimension Drawing
cathy
ca
ca
ca
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Terrific Sale Water Pump Controller/ Water Level Controlling Valve/ Floater Level Controller Replacement/ Water Tank Level Controller
