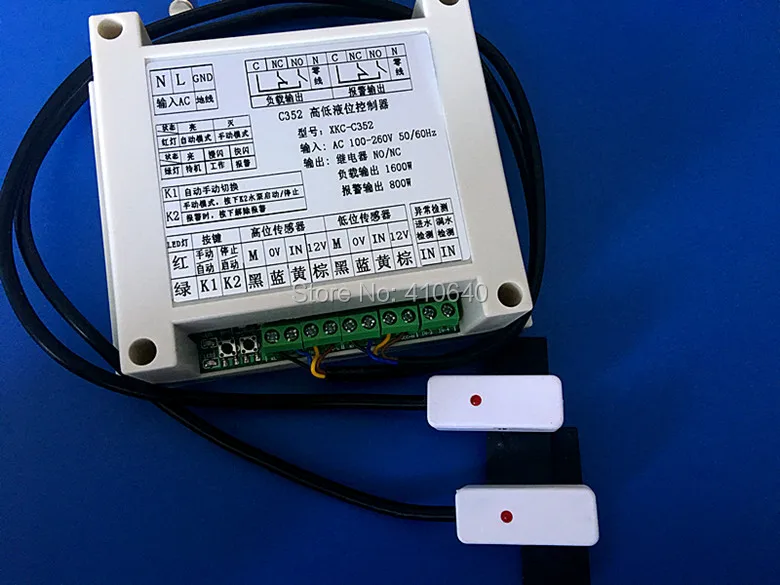

Automatic Level Switch Controller For Water Tank/Non-contact Water Pump Level Monitoring Controller

IMPORTANT NOTICE BEFORE YOU ORDER: This link is for "TWO probes level controller"

Model: XKC-C352-2P(Y26) !!!

The single controller buying link,

The three probes level controller buying link,

CACA1. Overview

XKC-C352 high low level controller with XKC-Y26-V 2 level probes can realize the level high low controlling function: when level in the vessel is too little will trigger low level sensor and send a low level alarm signal and trigger C352 controller close relay to start water pump to increase the level, when level reach to certain point, high level sensor send signal trigger C352 controller to cut relay, stop water pump working automatically, it’s a circulation. Can realize vessel level high low automatic controlling function, keep the level in the vessel steady.

2. Characteristics

1: AC95~265V wide voltage supply

2: Relay dry contact output, suitable for a variety of load control;

3: The control diversification can be manual or automatic mode to control the pump;

4: Easy to install, can use screws positioning install, also can use electrical boxes rail mounting;

3. Electrical Parameters Model: XKC-C352-2P(Y26)

Name: C352 high and low level automatic controller

Input voltage: AC100V-220V, 50 / 60Hz

Operating voltage: DC12V

Current job: working current ≤110 mA, static current consumption ≤20mA

Load power: 1.6KW or less (for three-phase pump overload or the need to install AC contactor)

Alarm output: 800W (resistive load) normally open normally closed output

Output: normally closed or normally open relay AC AC110V / 220V (please leave a message, the default setting to send 220V)

Input signal

Low sensor signal input;

High induction signal input;

Sensing head interface voltage: DC 12V

Working temperature: -10 ~ 75C

Dimensions: 115 * 90 * 40

4. Basic Function Introduction

1. The water level control: low water level below the sensing probe, the pump automatically starts to rise, to the high water level, automatically shut down the pump.

2. Pumping overtime protection: Continuous automatic pumping over five hours, automatically stops the pump. Working indicator flashes quickly, press K2 key to stop or delay the automatic recovery standby.

3. Manual and automatic switch: The controller automatically enters the default boot mode, press K1 key to switch the operating mode, the red light for the automatic mode to manual mode the red light off.

4. The non-contact sensing probe: non-contact capacitive sensing technology and a dedicated sensor control chip design, the probe has a durable, strong anti-jamming capability, sensor sensitivity, not in contact with the liquid, corrosion resistance, safety and non environmental pollution.
