Fantastic Special Speed Adjustable 12V DC Solar Submersible Water Pump, 50A-1235A, 3000LPH 3.5M Low noise For hot water pumping/ circulation

Best Water High Rating provide solar submersible water pump, submersible water pump, water pump Cool New Speed Adjustable 12V DC Solar Submersible Water Pump, 50A-1235A, 3000LPH 3.5M Low noise For hot water pumping/ circulation. Get 12% discount Now! Now US $65.99/piece. Dont waste your time. Buy Now only in Warner Technology Co., Ltd Trusted Seller Store!

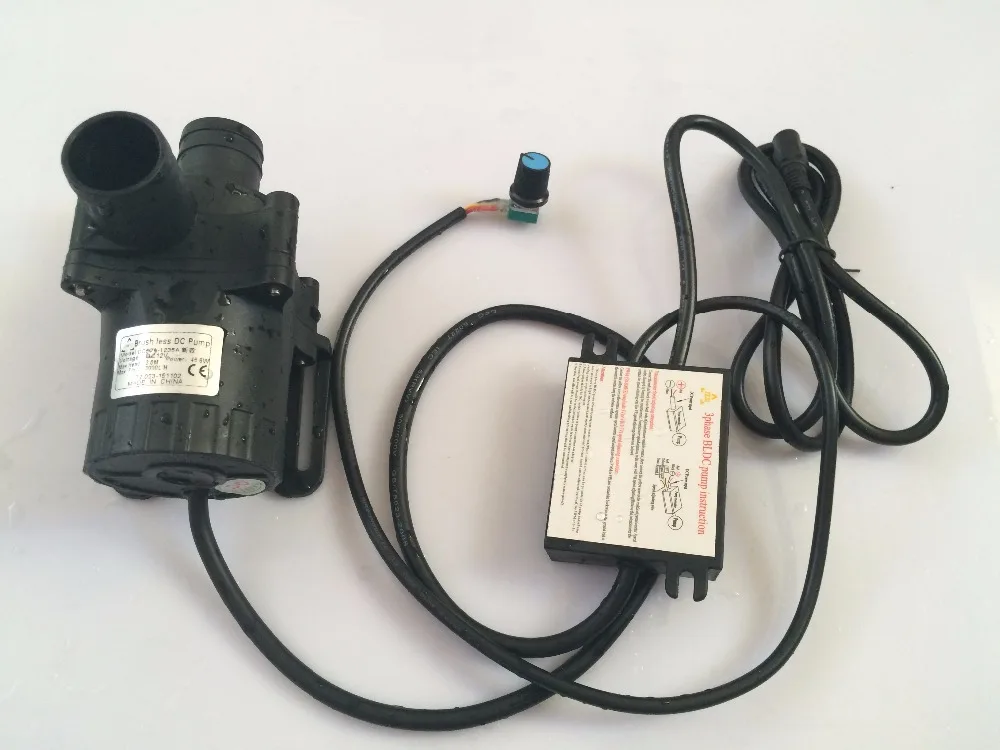

Speed Adjustable 12V DC Solar Submersible Water Pump, 50A-1235A, 3000LPH 3.5M Low noise For hot water pumping/ circulation

Max Head 3.5m, Max Flow Rate 3000L/H

3phase brushless design, No Brush Friction No spark, Absolute safety

Long Life Span, More than 30,000hrs

Withstand high temp. as 100 degrees Withstand high temp. as 100 degrees Celsius

Fit for continuously pumping hot water or other fluids

Low Noise, Completely Water Proof

Main Features

Brushless DC motor, also known as EC motor; Magnetic Driven;

Small size but strong; Low consumption & High Efficiency;

Long time continuous working, lifespan about 30000 hours;

Safety - no spark, Explosion - proof; Low noise about 40dB;

Submersible, 100% waterproof; Max Working Temperature: 100 degree (control box is advised to be located at normal temperature environment);

Wide range of working voltage; Maintenance - free;

Can be used to pump water, oil, etc.

Variety Power: DC electric source, Battery or Solar Panel;

Soft Start with Low in-rush current, great for Solar SYS;

Specifications

1. Dimension and weight: 115.9mmx95.5mmx69.3mm;600g

2. External diameter of outlet: 27mm

3. External diameter of inlet: 27mm

4. Driving mechanism: Brush-less, magnetic isolated design

5. Material of pump shell ABS,PES/SPS/PPS/PA66+30%GF (Optional for customization based on certain MOQ)

6. Condition of use: Can continuously work, submersible or land use (not self-priming)

7. Suitable medium: Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid)

8. Max working temperature: 100°C(for S/A sub-series)

9. Power consumption: 45.6W

10.Rated voltage: 12Vdc

11.Working voltage range: 5Vdc ~ 14Vdc

12. Max load current 3.8A

13. Max horizontal flow rate: 3000LPH (792G/H)

14.Max static lift: 3.5M (11.5ft)

15.Noise class: IP68(suitable for submersible installation)

16. Waterproof class: Can be more than 30,000hrs

17.Life span:Can be suitable solar panel, batteries, adapter or other power source

18. Feature: Small size with high efficiency,maintenance-free

Use ceramics shaft and carbon fiber sleeve

Completely water proof (IP68)

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Package included:

1pcs x DC50A-1235A 12Vdc micro hot water circulation pump

Cautions - some notes you must concern!

1. The positive pole is red or brown wire; the negative pole is black or blue wire.

2. Over-voltage, reverse wiring will burn the motor.

3. Confirm your power voltage before connecting the pump, to ensure that it works under the rated voltage.

4. Brushless DC pump is not self-priming pump. It must be installed under the liquid level or completely submerged in the liquid.

5. Keep the water clean, prohibiting impurities from entering the pump. Some device such as filter will be useful.

6. Dry operation (operation without liquid in the pump) will damage the pump.

7. Head means waters height inside of a pipe, not the spraying height.

8. Flow rate is horizontal rate, if you need a certain height, the flow rate will be reduced.

9. When the head is at the max height, the flow rate will be zero. Choose the suitable pump refer to our Performance Curves.

10. Ensure the water clear, regular checks can increase pumps lifespan.

Dimensions and Performance

Dimensions

Installation
