Hot Gift 5-24V Micro DC Solar submersible pump Brushless DC pump, 50C-2480S 8M 2400LPH Low Noise Low Power For Hot water circulation

Best Water High Rating provide solar submersible pump, dc pump, submersible pump Super Promotion 5-24V Micro DC Solar submersible pump Brushless DC pump, 50C-2480S 8M 2400LPH Low Noise Low Power For Hot water circulation. Get 12% discount Now! Now US $56.99/piece. Dont waste your time. Buy Now only in Warner Technology Co., Ltd Trusted Seller Store!

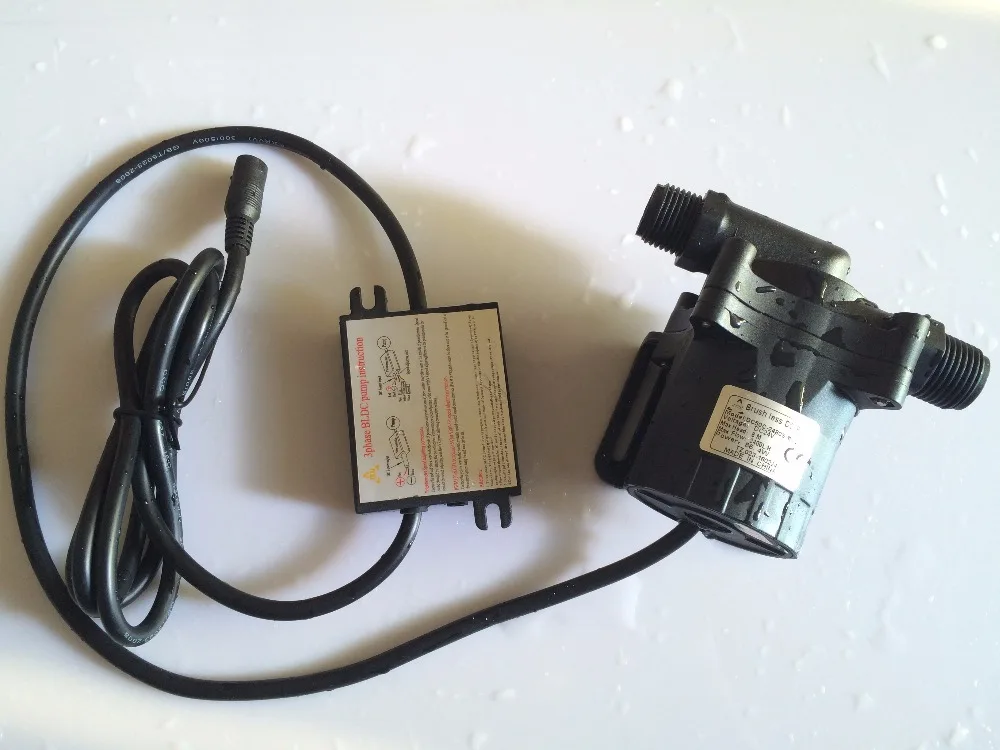

5-24V Micro DC Solar submersible pump Brushless DC pump, 50C-2480S 8M 2400LPH Low Noise Low Power For Hot water circulation

Max Head 8m, Max Flow Rate 2400L/H

3phase brushless design, No Brush Friction No spark, Absolute safety

Long Life Span, More than 30,000hrs

Withstand high temp. as 100 degrees Withstand high temp. as 100 degrees Celsius

Fit for continuously pumping hot water or other fluids

Low Noise, Completely Water Proof

Features:

3Phase brushless, permanent magnetic rotor, maintenance-free, long life

Can stand high temperature 100 degrees Celsuis, continuously pumping boiling water

Locked-rotor and reverse connection circuit protection, automatic overload protection (Locked-motor protection needs to be customized based on MOQ)

Soft-start with low in-rush current, suitable for direct solar panel connection

Small size, high efficiency, low consumption, low noise

Stator and circuit board sealed by epoxy resin, completely water proof

Sleeve and shaft with carbon fiber materials, better performance than ceramic and metal materials

Parameter adjustable, 24V pump’s Max head can be adjusted from 2m to 8m (Optional for customization based on certain MOQ)

Specifications

1. Dimension and weight: 100.5mmx95.5mmx69.6mm;600g

2. External diameter of outlet: 20mm

3. External diameter of inlet: 20mm

4. Driving mechanism: Brush-less, magnetic isolated design

5. Material of pump shell ABS,PES/SPS/PPS/PA66+30%GF (Optional for customization based on certain MOQ)

6. Condition of use: Can continuously work, submersible or land use (not self-priming)

7. Suitable medium: Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid)

8. Max working temperature: 100°C(for S/A sub-series)

9. Power consumption: 86.4W

10.Rated voltage: 24Vdc

11.Working voltage range: 5Vdc ~ 26Vdc

12. Max load current 3.6A

13. Max horizontal flow rate: 2400LPH (634G/H)

14. Max static lift: 8M (26.2ft)

15.Noise class: IP68(suitable for submersible installation)

16. Waterproof class: Can be more than 30,000hrs

17.Life span:Can be suitable solar panel, batteries, adapter or other power source

18. Feature: Small size with high efficiency,maintenance-free

Use ceramics shaft and carbon fiber sleeve

Completely water proof (IP68)

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Caution - some notes you must concern!

1. The positive pole is red or brown wire; the negative pole is black or blue wire.

2. Overvoltage, reverse wiring will burn the motor.

3. Confirm your power voltage before connecting the pump, to ensure that it works under the rated voltage.

4. BLDC pump is not self-priming pump. It must be installed under the liquid level or completely submerged in the liquid.

5. Keep the water clean, prohibiting impurities from entering the pump. Some device such as filter will be useful.

6. Dry operation (operation without liquid in the pump) will damage the pump.

7. Head means waters height inside of a pipe, not the spraying height.

8. Flow rate is horizontal rate, if you need a certain height, the flow rate will be reduced.

9. When the head is at the max height, the flow rate will be zero. Choose the suitable pump refer to our Performance Curves.

10. Ensure the water clear, regular checks can increase pumps lifespan.

Package included:

1pcs x DC50C-2480S 24Vdc micro hot water circulation pump

Dimensions and Performance

Dimensions

Installation
