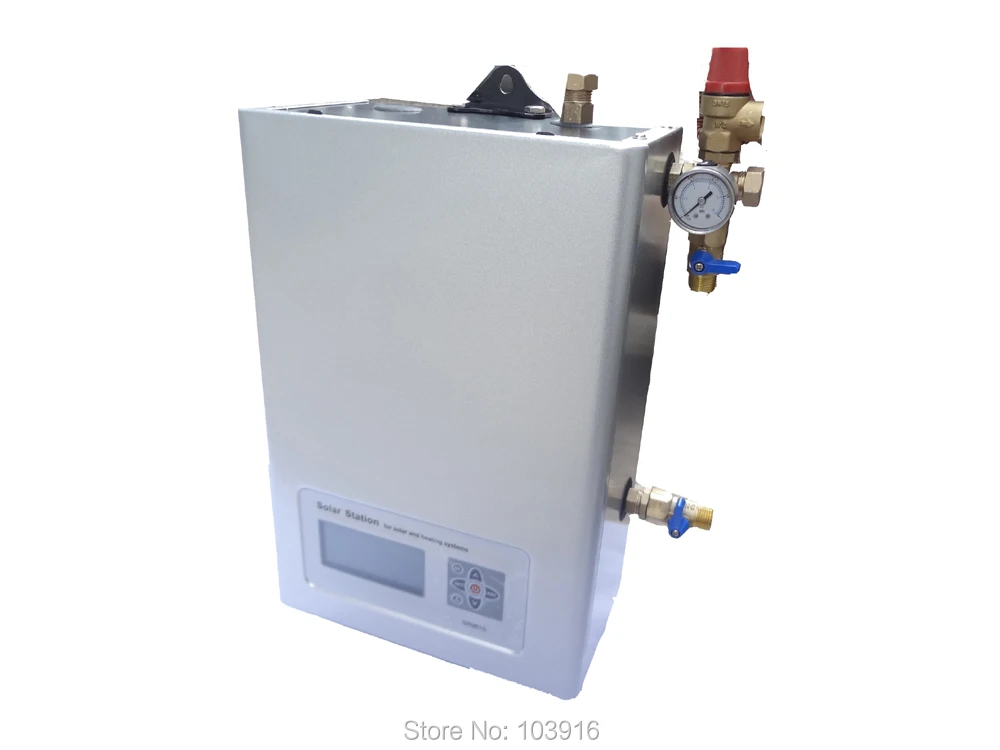

Big Stock Offers 220V Pump Station Work Station , hot water pump of Solar Hot Water Heater w/Pump w controller

Best Water High Rating provide pumping station, solar working station, solar pump station Big Stock New 220V Pump Station Work Station , hot water pump of Solar Hot Water Heater w/Pump w controller. Get 17% discount Now! Now US $246.42/piece. Hurry buy Now before back to normal price! Normal price US $296.89. Dont waste your time. Buy Now only in MISOL Electric Trusted Seller Store!

It includes: 1 pcs of 220V work station for hot water heating system.

It is Single pipe (remark: if you need double pipe, please contact us)

Voltage: 220v

Technical data:
Built in controller

Dimension:420mm* 280mm*155mm(not include the pipe connection)

Pressure of safety valve: 6 bar

Display range of pressure gauge: 0-10bar

Connection to expansion vessel: G1/2” male thread

Max. temperature:115 Cel. degree

Max. pressure: 10 bar

Flow meter measuring range: 0.1-20L/min

One Sensor for collector(pt1000,probe≤500 Cel. Degrees, Silicon cable≤280 Cel. Degrees)
Two Sensors for tank (NTC10K, B3950 sensor (≤ 135oC, PVC cable ≤105oC)

Water proof grade:IP43

Application:

Suitable for Split and Pressure system, which set the flow control, heat cycle, the exhaust, pressure control, temperature display, the transfer liquid injection / discharge, etc. Such multi-functional in one compact package of components, it have the features of easy-to-use and installation, its material and operating characteristics to take into account long time of collector in high temperature and other characteristics of the system.

MAIN FUNCTIONS:

Pump support:
1.Can be support Normal Pump.
2.Can be support High Efficiency pump.

Set up clock/week

Functions operation and parameters setup (user grade)
1 THET Timing heating
2 CIRC DHW water circulation function
3 tCYC Tempeature or time setting for DHW pump in three time sections

Functions operation and parameter setup (engineer grade)
1. DT Temperature difference for solar circuit pump
2. EMOF Maximum switch-off temperature of collector (for collector emergency close function)
3. CMX Maximum limited temperature of collector (collector cooling function)
4. CMN Low temperature protection of collector
5. CFR frost protection temperature of collector
6. SMX Maximum temperature of tank
7. REC Recooling temperature of tank
8. C-F Switch between Celsius and Fahrenheit

FUN Auxiliary functions
1. DVWG Anti legionnaires function
2. P1 Pump P1 operation mode selection
3. nMIN Pump speed adjustment(RPM control)
4. DTS Standard temperature difference of pump (for speed adjustment)
5. RIS Gain for circulation pump (speed adjusting)
6. Pump P2 operation mode selection
7. FTYP Flow meter type selection
8. OHQM Thermal energy measuring
9. FMAX Flow rate
10. MEDT Type of heat transfer liquid
11. MED% Concentration of heat transfer liquid
12. INTV pump Intermission function
13. tSTP Pump interval run-off time
14. tRUN Pump interval run-on time
15. AHO /AHF Automatic thermostat function
16. COOL Tank cooling function
17. BYPR Bypass function (high temperature)
18. HND Manual control
19. PASS Password set
20. LOAD Recovery to factory set
21. “ON/OFF” Controller switch on/off button
22. Holiday function
23. Manual heating
24. Manually control DHW pump
25. Temperature checking function
26. Protection function
27. Memory protection
28. Screen protection
29. Pump dry running protection
30. Trouble shooting
31. Trouble protection
32. Trouble checking
