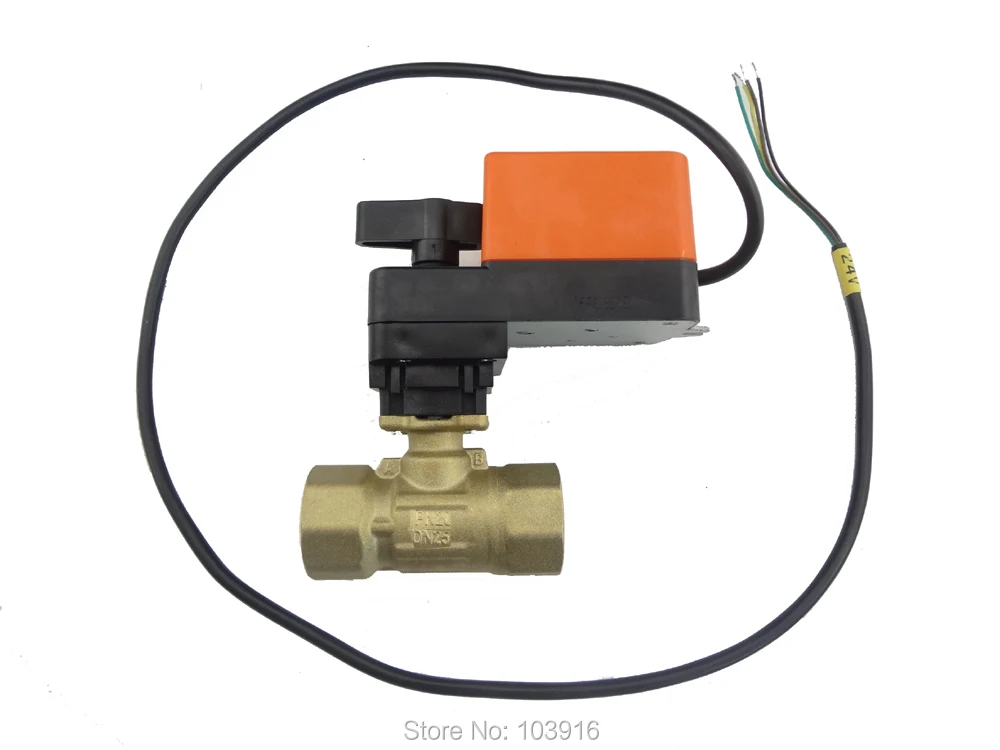

Cool Special Motorized Modulating control valve, 2 way, DN25(G1") (reduce port) 24V, 0-10V, electric valve

Best Water High Rating provide modulating control valve, electric valve, control valve Big Stock Cheap Motorized Modulating control valve, 2 way, DN25(G1") (reduce port) 24V, 0-10V, electric valve. Get 17% discount Now! Now US $112.95/piece. Hurry buy Now before back to normal price! Normal price US $136.09. Dont waste your time. Buy Now only in Trusted Seller Store!

This listing includes 1 unit of motorized valve 2 way, DN25(1" BSP) (reduce port)

MODULATING: 0-10V (proportional)

POWR VOLTAGE: 24VAC/DC

Operational mode

this control ball valve is motor-operated by the actuator. The actuator is controlled by proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data

Valve body:

Medium: cold/hot water, with 50% glycol Temperature of medium: 0°C...90°C

Rated pressure: PN2.0Pipe connector: internal thread

Ambient temp. range: −5…+60°C; 0…90%RHSize: 1"

Valve type: 2-wayFlow characteristic: equal percentage

Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: stainless steel brass stem: EPDM

Valve connector: PC Valve spindle: aluminum alloy

DN(mm)	Inch	Valve pipe	Kvs(m3/h)	Pvmax (MPa)	Ps (KPa)
DN25	1"	2 way	10	2.5Mpa	1400

Application:

Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.

Actuator

24VAC/DC±15%, proportional (0-10VDC)

Output torque: 4N.m Angle of rotation: 90°

Manual handle

Automatic overload protection system

Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.

Protect rank: IP54

Function (proportional type)

The actuator is controlled by a modulating on/off, 3-piont, and proportional control signal, using high transmitting ratio gear drive to fix and lock.

Black wire and brown wire are the power wire.

Yellow wire accept 0-10V control signal to control the valve’s open angle.

Flow characteristic

Input 0-10VDC control signal

Flow characteristic: equal percentage

Flow range: 0%-100%

Working Voltage	Actuator type	Output torque	Consumption	Valve body
24VAC/DC±15%	0(2)-10VDC	4N.m	3VA	DN25

IIInstallation:

1. Ensure that the valve body is in the full open status.

2. Ensure that the actuator is in the fully open position as the follow picture:

3. Aligning the valve stem, press down the aluminum alloy spindle.

Change of running direction

The rotation can be reversed by pushing the CCW/CW switch on the casing.

Factory settings: "CW"

Dimension and Wiring

Actuator

Connector Dimension
