Great Sale UK Stock 10w 12V Polycrystalline Solar Panel Complete Kit 10W Poly Solar Panel+3A Controller +Battery Clips
Best Water High Rating provide uk stock, controller control, kit kits 2018 Offers UK Stock 10w 12V Polycrystalline Solar Panel Complete Kit 10W Poly Solar Panel+3A Controller +Battery Clips. Get 15% discount Now! Now US $44.98/piece. Dont waste your time. Buy Now only in ECOSOURCES Store Trusted Seller Store!
New UK Stock No Tax No Duty 10w 12V Polycrystalline Solar Panel Complete Kit 10W Poly Solar Panel+3A Controller +Battery Clips
ECO-Souces solar panel compose of multi-crystal solar cell with an efficiency of over 17%.
All ECO-sources rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing
to provide maximum protection from the most severe environmental conditions.
The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation.
This translates to both more wattage per square foot and lower mounting structure cost.
1. Widely used on small dry camp and off-grid ligthing applications.
2. Easy Installation with pre-drilled hole.
3. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level.
(complete protection against environmental particles and low pressure water jets).
4. Resistance to Salt Corrosion and Humidity.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as
withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety
and anti-Reflection coated glass 3.2mm thick (tempered + patterned).
6. Warranty: 5-year material and workmanship warranty
| Related power | 10W |
| Voc | 20.6V |
| Vop | 17.3V |
| Short circuit current (Isc) | 0.69A |
| Working current (Iop) | 0.58A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/°C |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/°C |
| Temperate coefficient of power Voc | -0.47%/°C |
| Temperature range | -40°C to +80°C |
| Frame | Heavy duty aluminum |
| Kind of connection | waterproof junction box, can be customized |
| Guarantee of power | 90% within 10 years 80 within 25 years |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 337 ×204 x 18(13.3*8.06*0.72) |
| Net Weight | 0.85kgs (1.88lbs) |
3A solar Charge Controller
| Technical Parameter | 12V | 24v |
| Max charge current | 3A | 3A |
| Max load current | 6A | 6A |
| Over discharge protection | 10.8V(±0.2V) | 21.6V |
| Reset | 12V(±0.2V) | 24V (±0.2V) |
| Over charger protection | 14.5V/29V | 14.5V/29V |
| Float charge | 13.8V (±0.2V) | 27.6V(±0.2V) |
| Temperature compensation/°C | -27 | -27 |
| Self consumption | 1.5mA | 3mA |
| Waterproof | IP22 | IP22 |
| Operating temperature | -20 to +60°C | -20 to +60°C |
| LED charging indicator | Yes | Yes |
Quality assurance testing
1. Thermal cycling test. 2. Thermal shock test.
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test.5. Hail impact test.
6. Mechanical, wind and twist loading test.
7. Salt mist test.8. Light and water-exposure test.
9. Moist carbon dioxide/sulphur dioxide

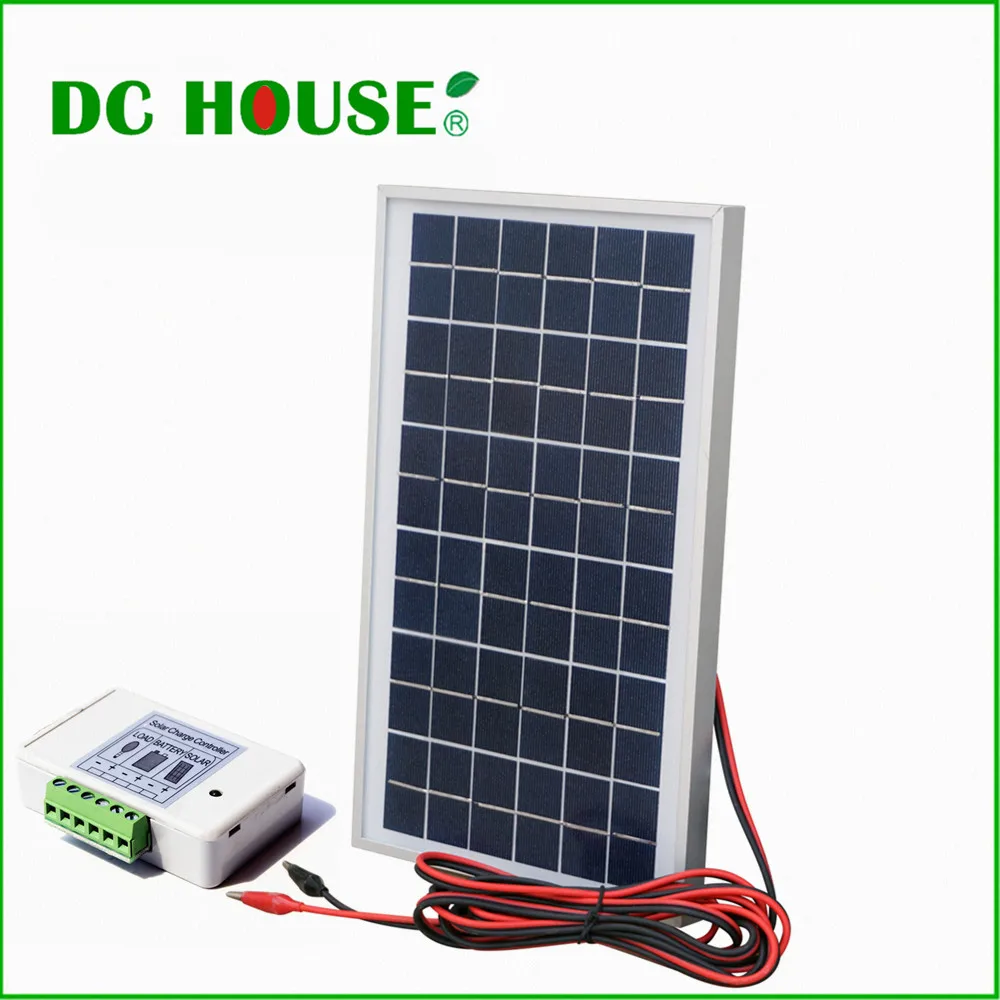

1.1pcs 10w poly solar panel with 1m cable
2. 1pcs 3A 12V/24V solar charge controller
3. 2m extension cable with battery clips
1. All goods are in stock, the transaction will be handled within 1 business day.
2. Items will be sent out within 3 days after we received your payment.
3. If the item shipping from China, we will send it visa China Post, the price is not include the customs,
taxes, duties,these will be charged to buyers. If it shipping from our EU, USA,AU,RU stock, it will no tax and duty.
4. Please note us your contact details include your phone number for easy contacting from express guy.
Thank you for your kindly understand.
FAQ:
1. About the solar panel:
The solar panel is made of some solar cells, via encapsulation of EVA thin film, with glass laminated and framing package of aluminum frame;
its test condition is Irradiance:1000 W/m2, temperature:25degree, AM:1.5(atmospheric transparency),
this is standard test condition, also is in theory concept, so the solar panel will have some change
(increase or decrease) as the different country, different weather, different pollution level.
When you use the solar panel, pls put it to the direction of 12:00 suns, set the intersection angle of solar panel and ground to 30 to 45 degree,
you also can use one VOM (multimeter) to test the point which current is maximum.
2. The difference of Mono (monocrystalline) and Poly (polycrystalline):
(1)Color of appearance: mono is black, poly is blue, maybe there is a little colar aberration;
(2)Conversion efficiency: mono is higher than poly, but poly is higher than mono when weak light, that is to say,
monos efficiency is higher than poly when it is sunny, opposite the poly will be higher when it is cloudy.
(3)Price: mono will higher than poly.
3. If you buy solar panel is in order to finish one complete solar power system, you must to know:
(1)One system is made of solar panel, inverter, controller, battery etc.
(2)Solar Panel is main part in one system, its function is converse the sun energy to electric energy.
(3)Solar Controller can control the status of one complete system and protection for over-charge and over-discharge of battery.
(4)Solar Inverter: because the solar panels output is DC electric as usaually, in order to supply
power to the electricity products AC220V, so it need one inverter to conversion the DC to AC electric.
Guarantee:
Customers should inspect the item(s) and notify us within 7 days if have any problems. If you have any problem with your item,
please contact us before leaving feedback. All items must be issued an RMA number before they returned.
The shipping cost of return goods is to be paid by the Buyer.
Its have 12 months Warranty from the date of purchase covering manufacturing defects.
This warranty excludes any damage caused by the human.
Feedback:
1. Please check the package and item carefully to make sure there is no problem .
2. If you do not satisfied with the item or get damaged item, please contact with us firstly before leaving nagative feedback,
we will resolve the problem to satisfy you.
3. Online surpport: monday to friday 9:00 am to 5:30 pm (GMT+8). (excluded public holiday)
4. If you are satisfied with our product, kindly leave full-stars (
Your feedback will encourage us do it better in the further. Thanks!
The company committed to provide customers with high quality products since 2004. As a manufacturer, we have more than 10 year
experiences in produce solar panels and renewable energy products. Also we have professional technical and customer team to
supply high quality products and better customer service.
Now the products have exported to Africa, Europe, America, some Middle East countries and some Asia countries.
We would like to be your best supplier in China.
